Maintaining the correct refrigerant levels in your John Deere equipment is crucial for optimal air conditioning performance. This comprehensive guide provides detailed refrigerant capacities, oil types, and quantities for various John Deere models, ensuring your machinery operates efficiently and comfortably. Let’s jump in.
John Deere Refrigerant Capacity Chart
| Model Series | Refrigerant Type | Refrigerant Quantity (g) | Compressor Oil Type | Oil Quantity (ml) |
|---|---|---|---|---|
| 5050R – 5100R | R134a | 1600 | PAG ISO 46 | 250 |
| 5080GF / 5090G | R134a | 1200 | PAG ISO 46 | 250 |
| 5080M – 5100M | R134a | 1600 | PAG ISO 46 | 250 |
| 5620 – 5820 | R134a | 1600 | PAG ISO 46 | 280 |
| 6000 – 6900 | R134a | 1300 | PAG ISO 46 | 190 |
| 6000SE – 6900SE | R134a | 1450 | PAG ISO 46 | 250 |
| 6010 – 6910 | R134a | 1300 | PAG ISO 46 | 190 |
| 6010SE – 6610SE | R134a | 1450 | PAG ISO 46 | 250 |
| 6020 – 6920 | R134a | 1450 | PAG ISO 46 | 220 |
| 6800 – 6900 | R134a | 1300 | – | – |
| 6810 – 6910 S | R134a | 1300 | – | – |
| 6820 – 6920 S | R134a | 1450 | – | – |
| 7200R – 7800R | R134a | 1850 | PAG ISO 46 | 255 |
| 7600 – 7800 | R134a | 1700 | PAG ISO 46 | 255 |
| 7610 – 7810 | R134a | 1800 | PAG ISO 46 | 255 |
| 7720 – 7920 | R134a | 1800 | PAG ISO 46 | 255 |
| 8110 – 8410 | R134a | 2150 | PAG ISO 46 | 255 |
| 8120 – 8520 | R134a | 2450 | PAG ISO 46 | 255 |
| 8130 – 8530 | R134a | 2050 | PAG ISO 46 | 255 |
| 8225R – 8370R | R134a | 2050 | PAG ISO 46 | 255 |
Related John Deere Battery Size Chart(For All JD Models)
Importance of Correct Refrigerant Levels
Maintaining the specified refrigerant and oil levels is vital for:
- Optimal Cooling Performance: Ensures the air conditioning system operates efficiently.
- Component Longevity: Prevents undue stress on the compressor and other components.
- Energy Efficiency: Reduces fuel consumption by minimizing the load on the engine.
Overcharging or undercharging the system can lead to decreased performance and potential damage. Always adhere to the manufacturer’s specifications.
Related Craftsman Battery Compatibility Chart(For All Types)
FAQ
How much R-134a refrigerant is required?
The required amount of R-134a refrigerant varies by equipment type and model. For John Deere tractors, refrigerant capacity typically ranges between 1200g and 2450g depending on the model. Always refer to the manufacturer’s chart or service manual to find the exact capacity for your specific model to avoid undercharging or overcharging the system.
How do you calculate refrigerant capacity?
Refrigerant capacity isn’t usually “calculated” manually in the field. It’s determined by the manufacturer based on the design of the air conditioning system. However, during repairs or retrofits, technicians might estimate using:
- System component sizes (evaporator, condenser, lines)
- Refrigerant pressure readings
- Superheat and subcooling values
- Weight measurements with a scale during recovery or charging
What refrigerant is used in John Deere tractors?

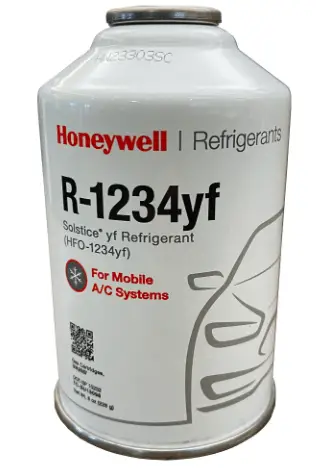

Most modern John Deere tractors use R-134a refrigerant. Older models may use R-12, and newer equipment might be moving toward R-1234yf due to environmental regulations, but R-134a remains the industry standard for current John Deere agricultural and construction equipment.
What units is refrigerant capacity?
Refrigerant capacity is usually measured in:
- Grams (g) – most commonly used in vehicle and machinery specs
- Pounds (lbs) or ounces (oz) – used in North America
- Kilograms (kg) – in metric technical manuals
For example, a John Deere tractor may specify 1450g of R-134a, which is approximately 3.2 pounds.
How much freon does a John Deere 4455 take?
The John Deere 4455 typically requires approximately 3.0 to 3.3 pounds (1360g to 1500g) of R-12 refrigerant if it’s an original system. If it has been retrofitted to R-134a, it generally requires slightly less, around 80-90% of the original R-12 charge, which equates to about 1200g to 1350g of R-134a.
What oil is used with R-410A refrigerant?
R-410A refrigerant uses POE (Polyolester) oil, not PAG oil which is used with R-134a systems. POE oil is necessary due to its compatibility with the chemical structure of R-410A and its excellent lubricating properties at high pressure. Common types include:
- POE 32 (ISO VG 32)
- POE 46 (ISO VG 46)
